Now available in robust form factor

The Ethernet FMC can now be used on carriers that extend the length of the FMC

Buy now

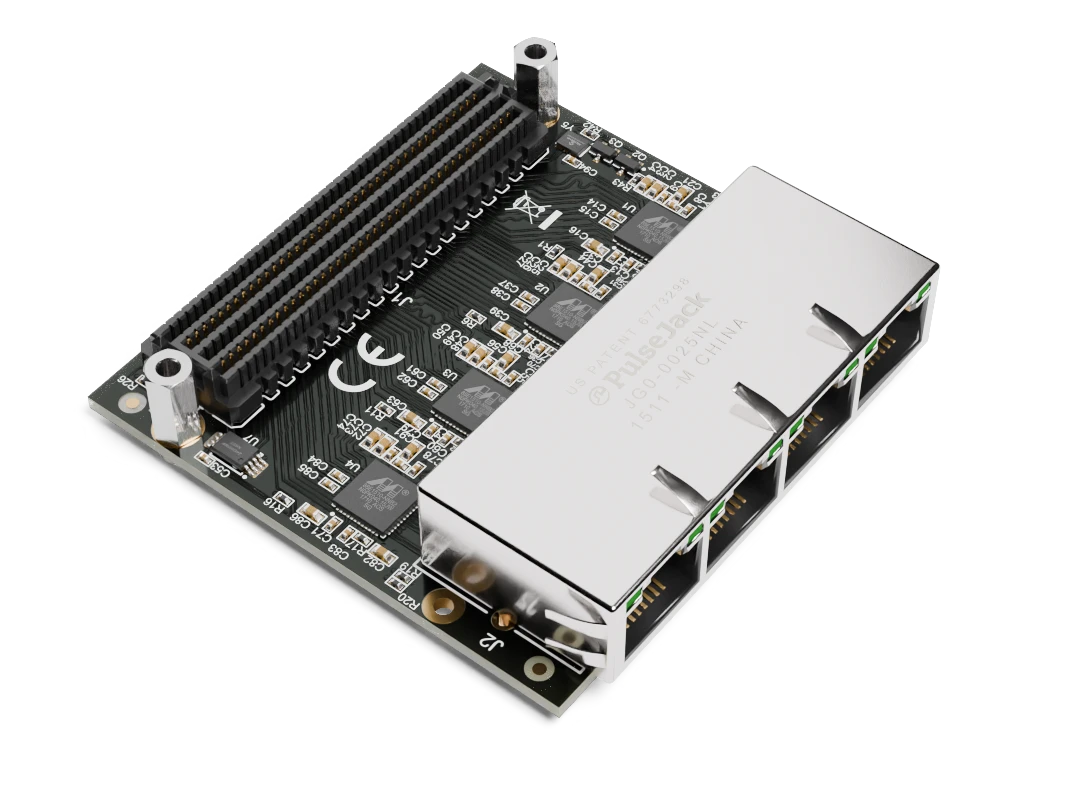

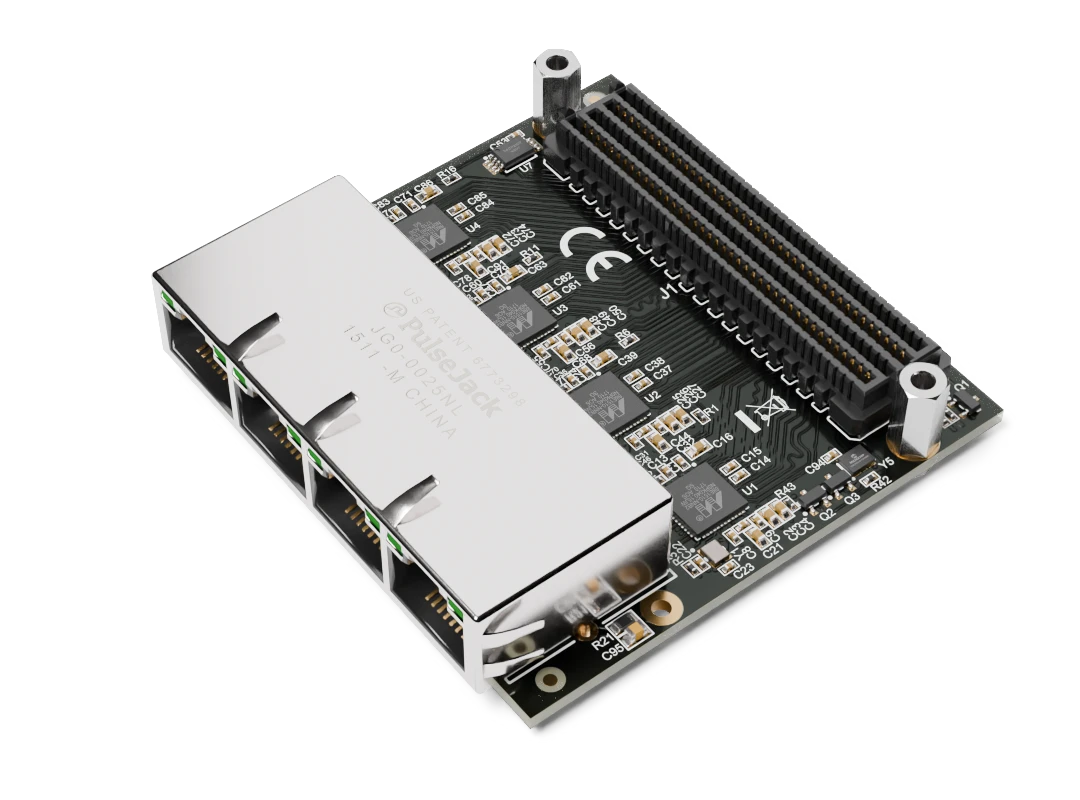

The Quad-port Gigabit Ethernet FMC

The instant solution for FPGA networking applications.

Buy now

Example designs for the ZedBoard

Plug it in and start designing today.

Buy now

Redesign the world's largest network

Redefine networking from the ground up with FPGA technology.

Buy now

Up & running in just 2 minutes.

Hit the ground running with fully functional example designs for the ZedBoard that you can download from Github, the open source Git repository.

Save development time.

Leverage the open source example designs for Vivado and accelerate your development cycles. We’ve taken care of the low-level so you can focus on your application.

Straightforward tech support.

Get help directly from the designer. No webcases, no automated emails, just straightforward assistance from an FPGA expert.

Easy ZedBoard integration

When paired with the ZedBoard, the Ethernet FMC is your fastest path to proof-of-concept. The fully functional examples for the ZedBoard allow you to start designing your product today.

See the example designs


4 x Gigabit Ethernet PHYs

Marvell Gigabit Ethernet PHYs for maximum network compatibility and performance.

Vita 57 compliant LPC

Vita 57 compliant Low-pin-count FMC connector for compatibility with all FMC carriers.

125MHz Oscillator

LVDS differential output oscillator to supply the FPGA with a clock for the Ethernet MACs.

Reference designs

Fully functional example designs available for download on Github.

How it works

This is how the ZedBoard and Ethernet FMC make a complete TCP/IP stack


Gigabit Ethernet Switch

Connect devices together on a computer network.


Traffic Monitor

Probe, record and monitor the traffic on your networks.

Hardware Accelerated Router

Forward packets between computer networks with minimum latency.

Latency Measurement

Measure, track and analyze your device response times in real-time.

OpenFlow Switch

Test experimental protocols on existing networks.


High-speed Congestion Control

Eliminate network congestion using hardware accelerated traffic control.
