The Ethernet FMC Max is an add-on/expansion board (FPGA Mezzanine Card) for FPGA and SoC based development boards. The mezzanine card has 4x Texas Instruments DP83867 Gigabit Ethernet PHYs to provide 4 ports of gigabit Ethernet connectivity to the carrier development board.

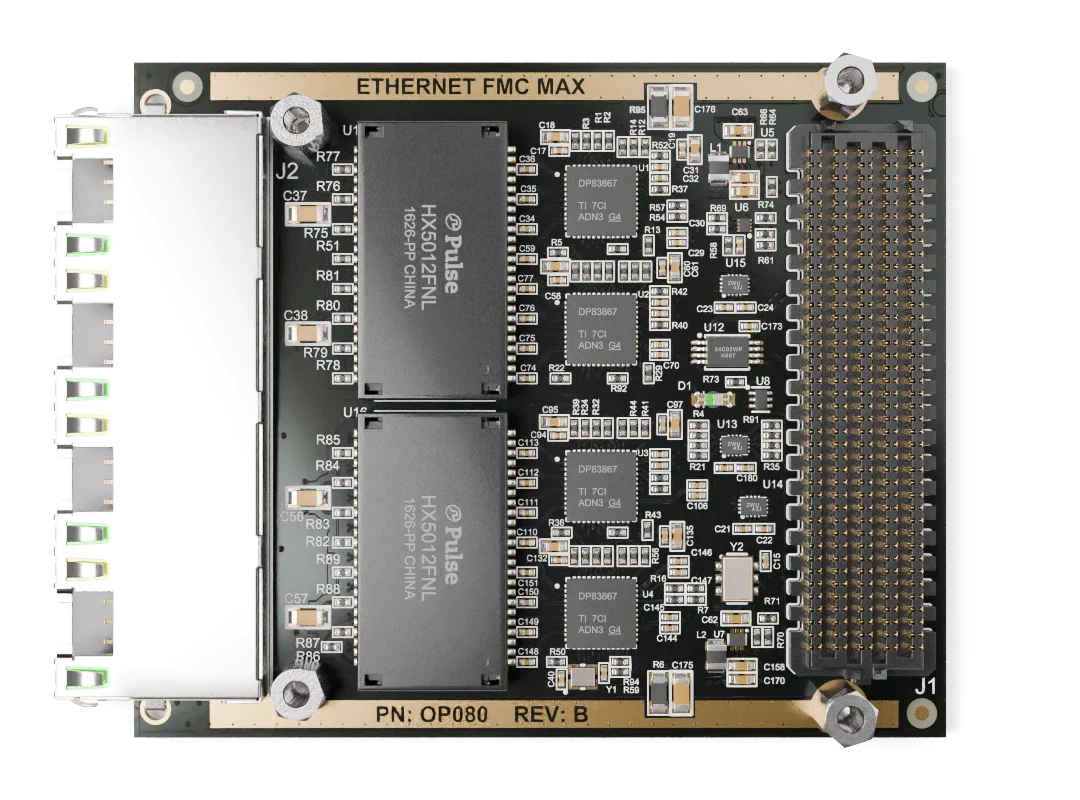

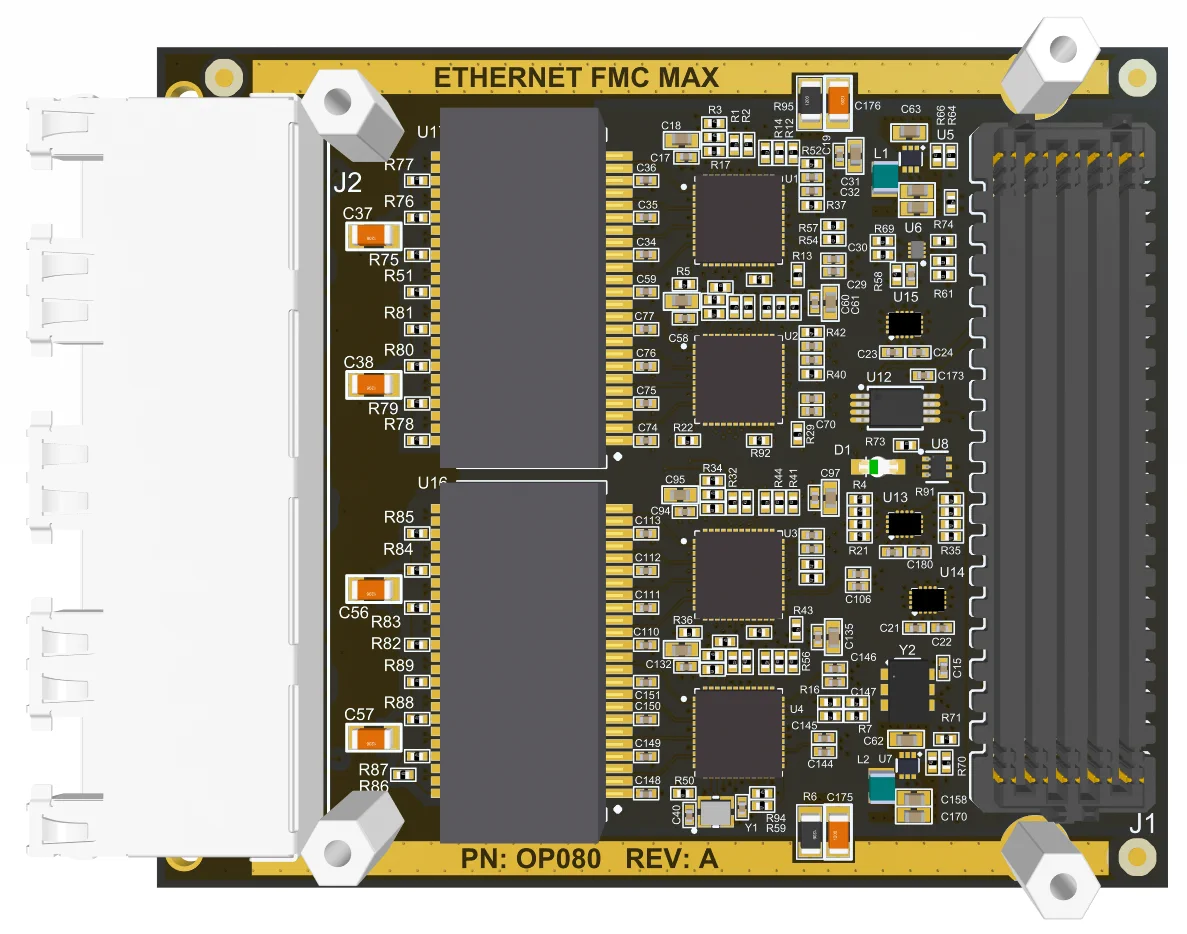

Top view

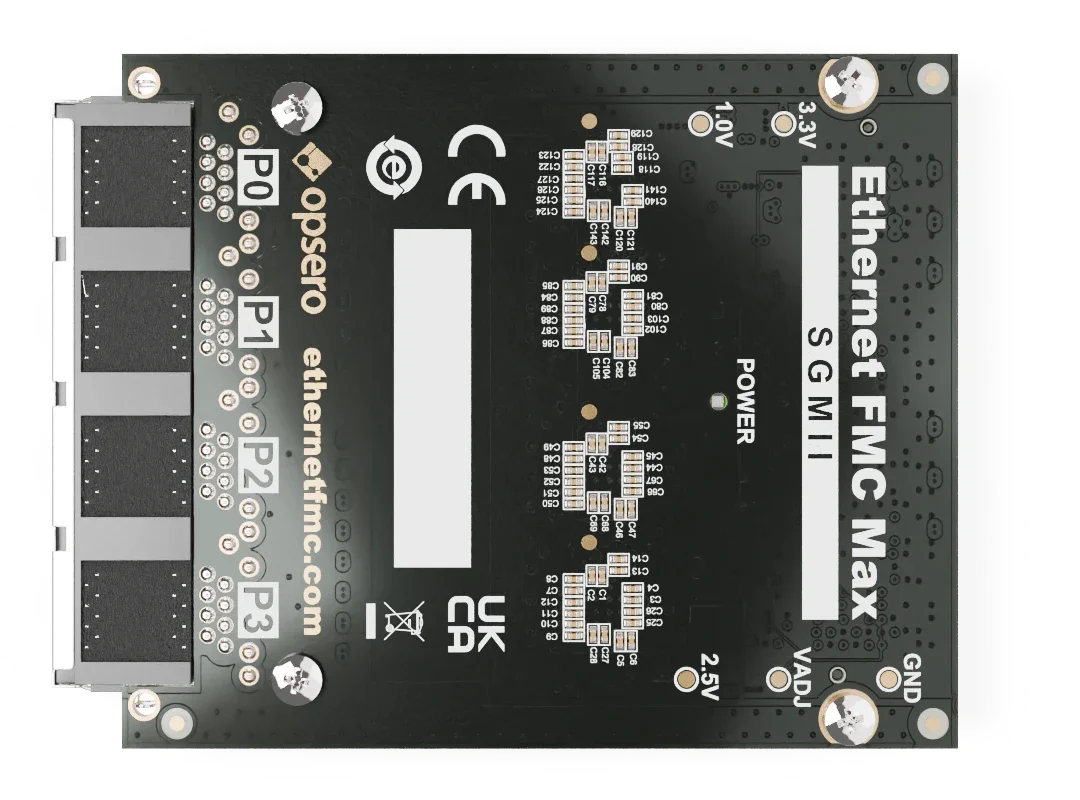

Bottom view

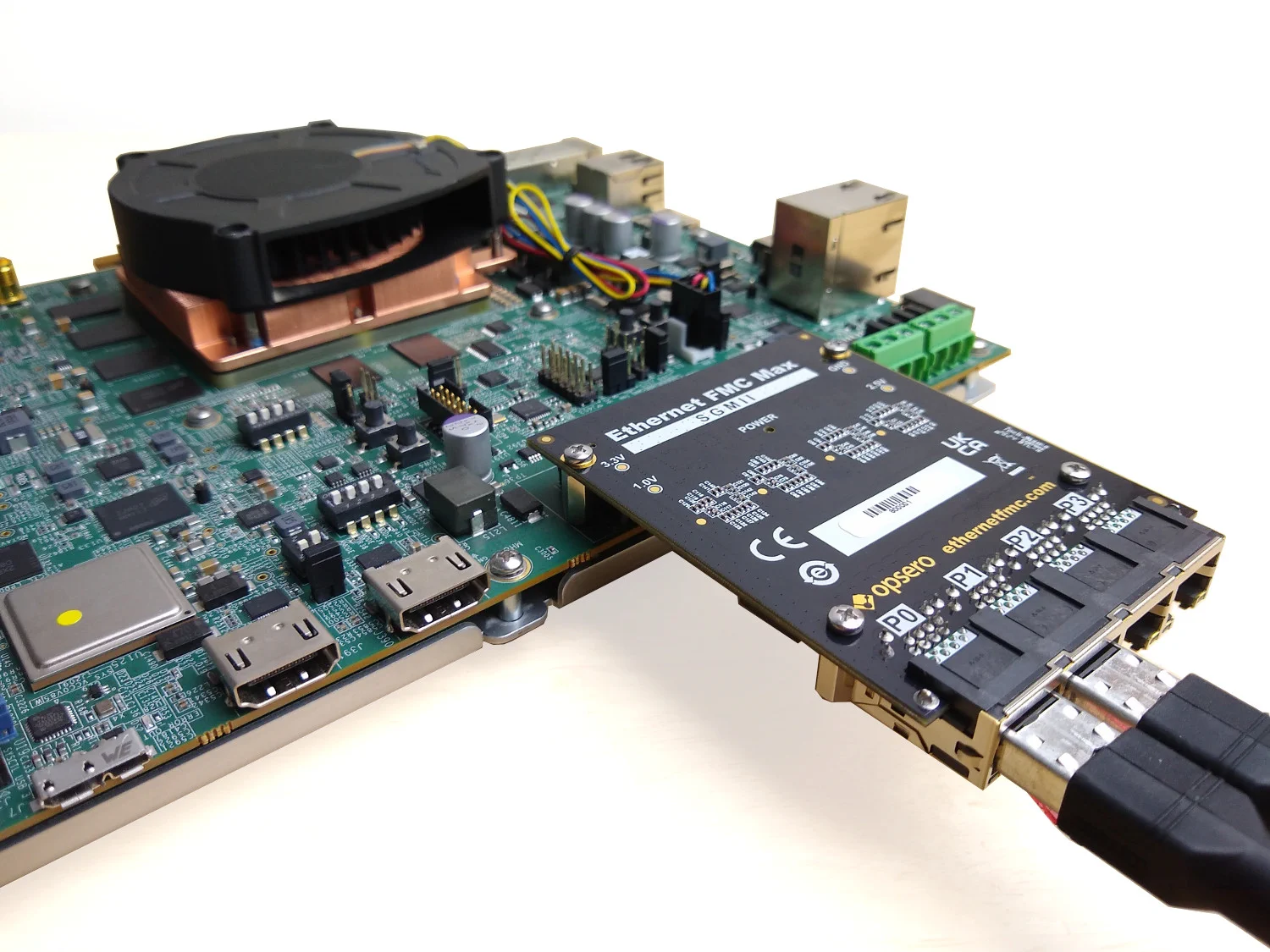

Application example
Features
- 4x Texas Instruments DP83867 Gigabit Ethernet PHYs
- Supports a wide range of I/O voltages (VADJ): 1.2V-2.5V
- High pin count FMC connector
- 4x SGMII PHY interfaces
- Quad Ethernet RJ45
- Discrete Ethernet magnetics
- FMC pinout conforms to VITA 57.1 FMC Standard
- Example designs with sources for several development boards
- Standalone and PetaLinux example designs
Ordering
The Ethernet FMC Max can be ordered from the vendors listed below. The links under the part number column will take you to the corresponding order page.
| Vendor | Part name | Part number |
|---|---|---|
| Opsero | Ethernet FMC Max | OP080 |
| Digi-Key | Ethernet FMC Max | OP080 |
Included with the Ethernet FMC Max are 2x machine screws for fixing the mezzanine card to the carrier board.
