The Ethernet FMC (FPGA Mezzanine Card) is an add-on/expansion board for FPGA and SoC based development boards. The mezzanine card has 4x Marvell 88E151x Gigabit Ethernet PHYs to provide 4 ports of gigabit Ethernet connectivity to the carrier development board.
Top view

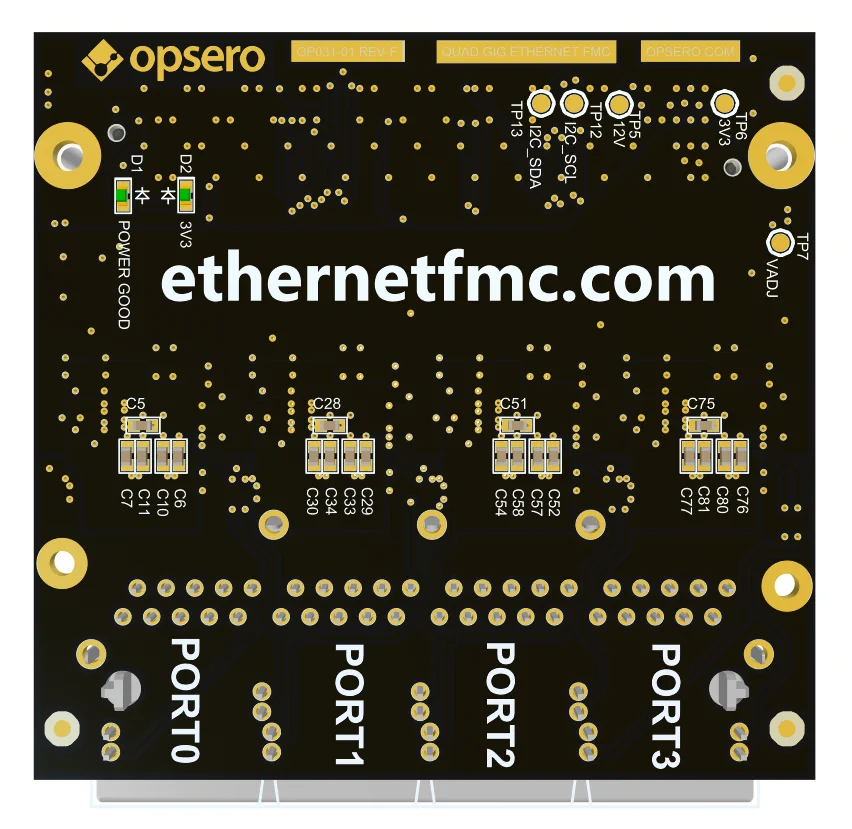

Bottom view
Features
- 4x Marvell 88E151x Gigabit Ethernet PHYs
- RGMII PHY interface
- Quad Ethernet RJ45 with integrated magnetics
- FMC pinout conforms to VITA 57.1 FMC Standard
- Example designs with sources for several development boards
- Standalone and PetaLinux example designs
Ordering
The Ethernet FMC can be ordered from the vendors listed below. The links under the part number column will take you to the corresponding order page.
| Vendor | Part name | Part number |
|---|---|---|
| Opsero | Ethernet FMC 1.8V | OP031-1V8 |
| Opsero | Ethernet FMC 2.5V | OP031-2V5 |
| Digi-Key | Ethernet FMC 1.8V | OP031-1V8 |
| Digi-Key | Ethernet FMC 2.5V | OP031-2V5 |
Included with the Ethernet FMC are 2x machine screws for fixing the mezzanine card to the carrier board.
