Mechanical Information

Height Profile

The figure below illustrates the height profile of the Quad SFP28 FMC. All of the components on the Quad SFP28 FMC Max fit within the 10mm gap between the FMC card and the development board. The quad SFP28 cage ( Link-PP, SFP28 Quad Cage, LP14CC01000S ) has a height of less than 10mm.

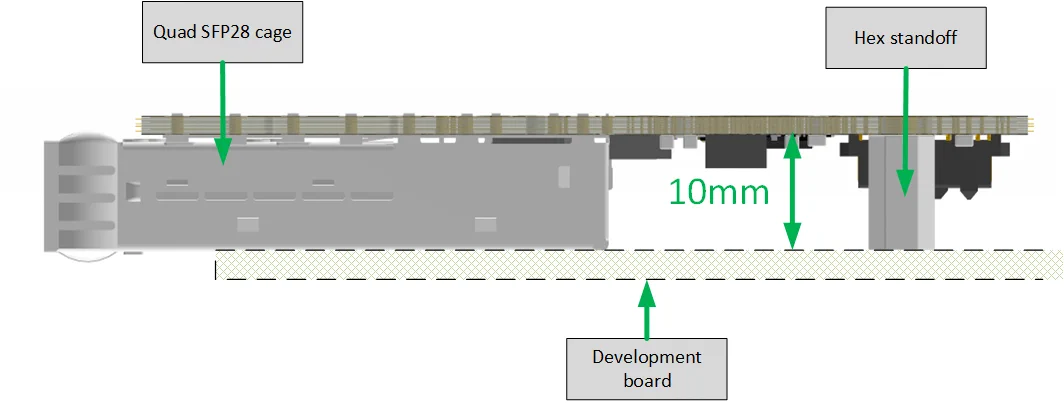

Quad SFP28 FMC height profile (view from side)

Dimensions

The mechanical dimensions of the Quad SFP28 FMC are illustrated in the figure below. All dimensions are in millimeters (mm).

The assembly drawings are also available as PDF files that you can download at the provided links.

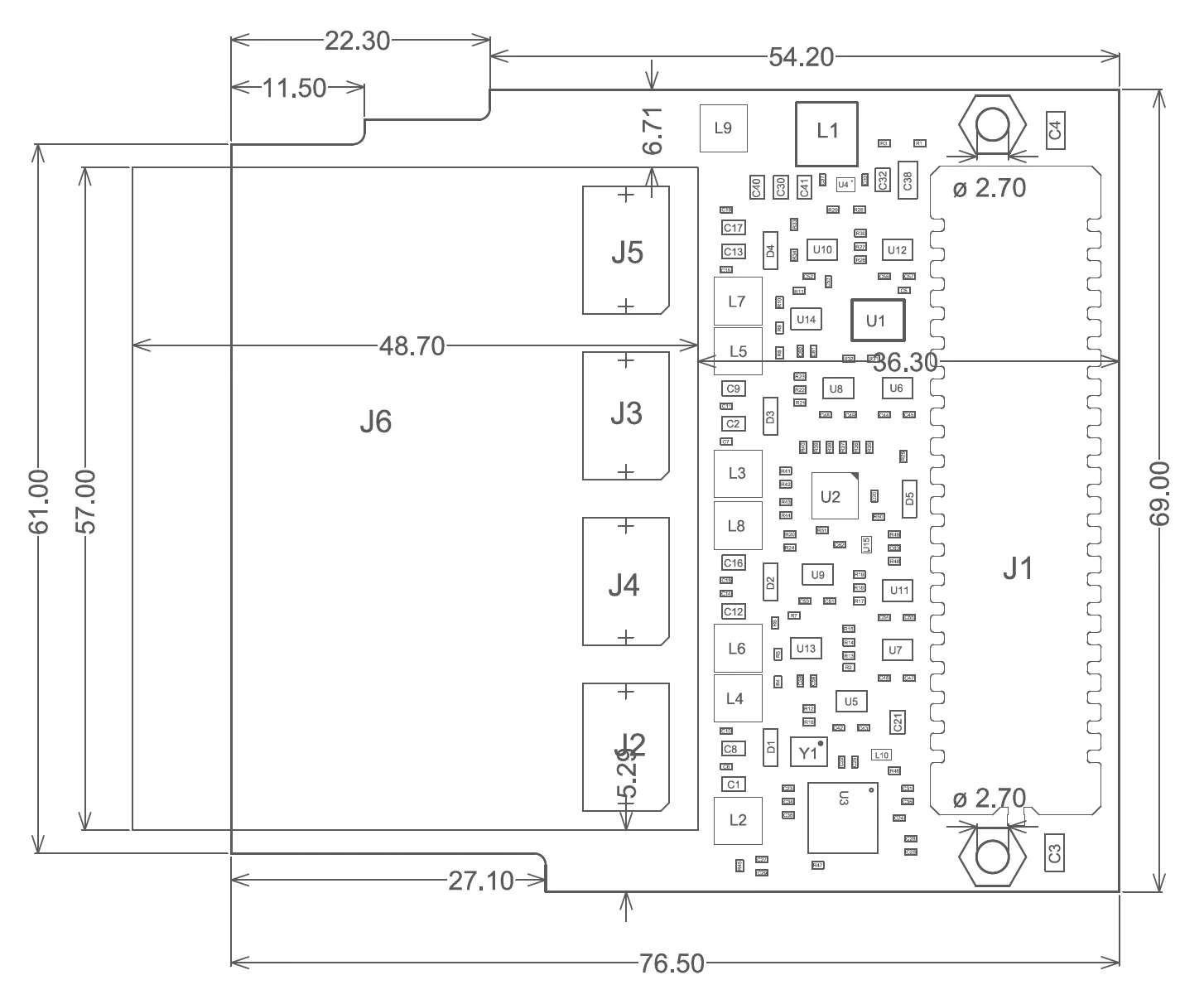

Quad SFP28 FMC mechanical drawing

3D Model

The 3D model of the board is available as a STEP file at the links below:

Mezzanine fastening hardware

For mechanical fastening of the mezzanine card to the carrier board, the Ethernet FMC comes with 2x hex standoffs. We highly recommend using the machine screws on each of these standoffs to fix the mezzanine card to the carrier board. If the fastening screws are misplaced, they can be replaced by the ones listed below, or equivalents.

The hex standoff and machine screw part numbers are listed below:

  • Hex standoff, Thread M2.5 x 0.45, Brass, Board-to-board length 10mm
    Part number: V6516C
    Manufacturer: Assmann

  • Machine screw, Thread M2.5 x 0.45, Length (below head) 4mm, Stainless steel, Phillips head
    Part number: 90116A105
    Supplier: McMaster-Carr
